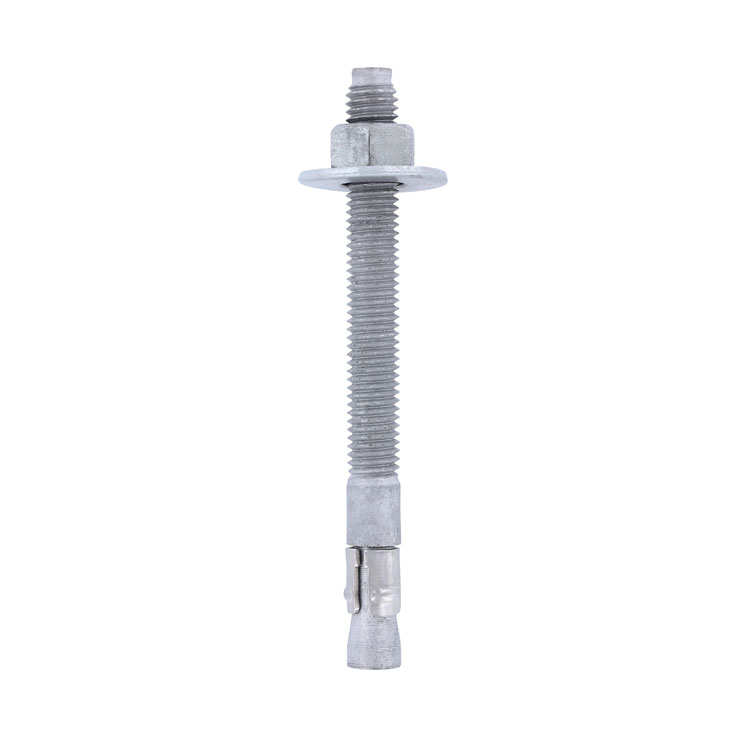

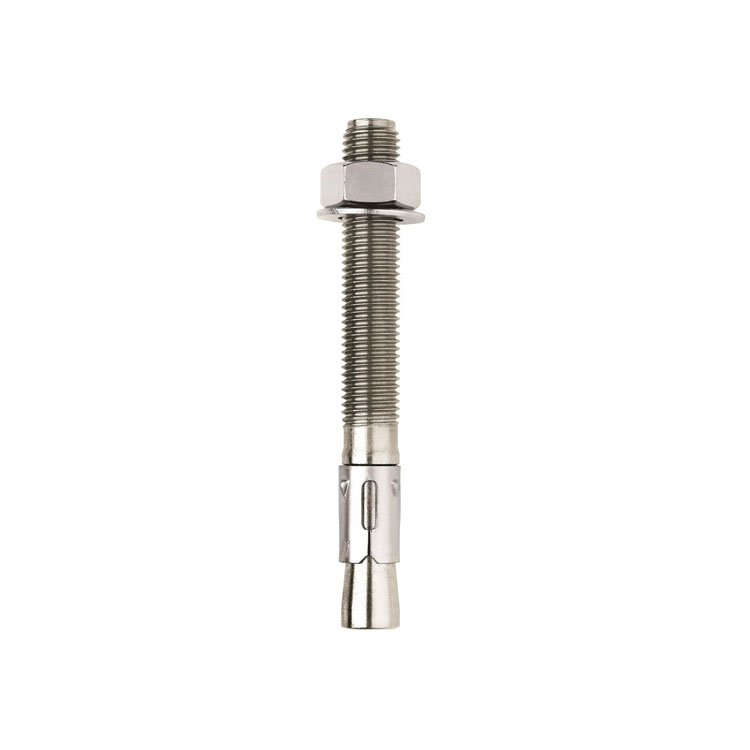

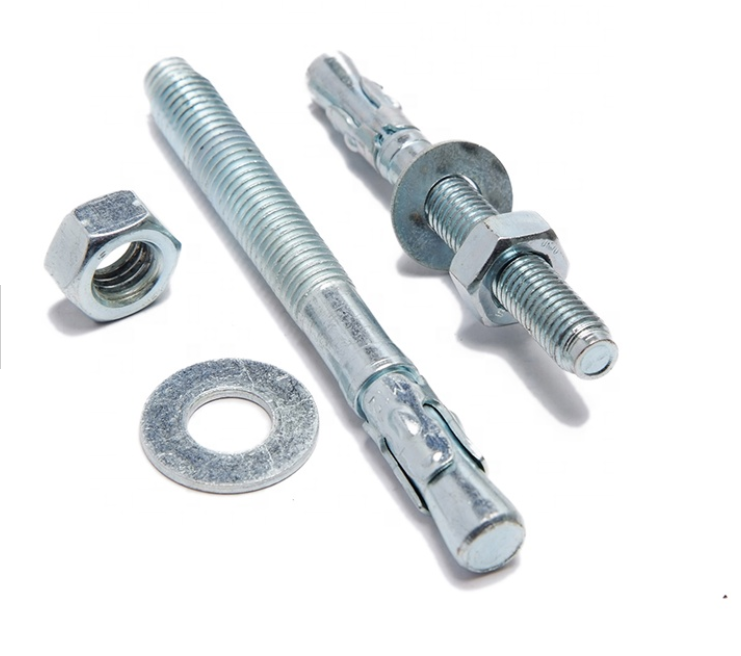

Galvanized Wedge Anchor Screw Type Expansion Anchor Bolts

  • Galvanized Wedge Anchor Screw Type Expansion Anchor Bolts
  • Galvanized Wedge Anchor Screw Type Expansion Anchor Bolts
  • Galvanized Wedge Anchor Screw Type Expansion Anchor Bolts
  • Galvanized Wedge Anchor Screw Type Expansion Anchor Bolts

Galvanized Wedge Anchor Screw Type Expansion Anchor Bolts

    Payment Type: L/C,T/T,D/P,Paypal
    Terms of Trade: FOB,CFR,CIF,EXW,FCA,CPT,CIP
    Min. Order: 1000 Piece/Pieces
    Delivery Time: 20 Days
    Packaging: Product bulk in plastic,bagCartion box,Wood pallet
    Brand: ZG
    Transportation: Ocean,Land,Air
    Place of Origin: KUNSHAN JIANGSU CHINA
    Supply Ability: 50Ton/MONTH
    Certificate: ISO CE SGS
    HS Code: 731815
    Port: Shanghai,Ningbo

Product Description

Footstone: Concrete & Natural Hard Stone

Material: Steel, Stainless Steel
Usuage: Extensive use for perforation type's fastening, Such as metal frame, profiled bar, wall mounting, soleplate, bracket, machines, beam, angle iron, track etc. You can adjust the embedded depth according to the fixity's thickness, the tensile breaking strength will be increasing along with to the embedded depth increasing. The longer thread anchors are much better suitable for wall mounting and heavy duty goods fixing.
Purpose: To be reliable, and to ensure the great tensile strength, we must ensure that using of the clip will be full expansion, and the clip can not be detached from the body or distorted.
Note: According to the clip, we have 3 different types, A B C. Anchor length can be customized in accordance with the construction requirements.The enclosed load carrying capacity data of this product is under the test condition of 280-330kgs/cm2 of the concrete intensily, and the max security load carrying capacity should not exceed 25% of the standard gauge.


Size Bit Dia(mm) Thread Length(mm) Bore Dia(mm) Min Depth(mm) Max Tension(Kgs)
M6×45 6.0 20 6.0 30 850
M6×60 6.0 25 6.0 35 850
M6×70 8.0 25 8.0 35 850
M6×90 8.0 30 8.0 35 850
M8×50 8.0 25 8.0 35 1105
M8×60 8.0 25 8.0 40 1105
M8×80 8.0 30 8.0 40 1105
M8×100 8.0 50 8.0 40 1105
M8×120 8.0 60 8.0 40 1105
M10×70 10.0 35 10.0 50 1500
M10×80 10.0 35 10.0 50 1500
M10×90 10.0 50 10.0 50 1500
M10×120 10.0 70 10.0 50 1500
M10×150 10.0 100 10.0 50 1500
M12×75 12.0 30 12.0 50 2300
M12×80 12.0 30 12.0 60 2300
M12×90 12.0 40 12.0 55 2300
M12×100 12.0 40 12.0 60 2300
M12×110 12.0 60 12.0 60 2300
M12×120 12.0 60 12.0 60 2300
M12×140 12.0 70 12.0 60 2300
M12×160 12.0 100 12.0 60 2300
M16×90 16.0 45 16.0 60 3400
M16×120 16.0 60 16.0 70 3400
M16×140 16.0 60 16.0 80 3400
M16×160 16.0 80 16.0 80 3400
M16×180 16.0 100 16.0 80 3400
M16×220 16.0 150 16.0 80 5400
M20×120 20.0 60 20.0 80 5400
M20×160 20.0 60 20.0 100 5400
M20×220 20.0 120 20.0 100 5400


Galvanized wedge anchor Expansion Anchor Bolts

Galvanized wedge anchor Expansion Anchor BoltsGalvanized wedge anchor Expansion Anchor Bolts


Galvanized wedge anchor Expansion Anchor Bolts

Galvanized wedge anchor Expansion Anchor Bolts
Related Products

Galvanized wedge anchor Expansion Anchor Bolts




Certifications

Galvanized wedge anchor Expansion Anchor Bolts

Testing Laboratory

Galvanized wedge anchor Expansion Anchor Bolts

We have Magnetic Powder Detector, Material Testing Machine, Metallographic Microscope, such testing instruments, guarantee product high quality and beautiful appearance.The quality control is strictly performed from buying raw materials in warehouse to different machining procession and to final packing.

Production Process

Galvanized wedge anchor Expansion Anchor Bolts

First, we have our own High-precision Digital Machining center for mould making in special Mould Workshop, excellent mould make product beautiful appearance and its size accurately.

The second, we adopt blasting procession, removing Oxidation surface, make the surface to be bright and clean and uniform and beautiful.

Packaging & Shipping

Galvanized wedge anchor Expansion Anchor Bolts


Kunshan Zhonggu Precision Hardware Co., Ltd.



Kunshan Zhonggu Precision Hardware Co., Ltd founded in 2006, is a set design, development, production, sale as a whole, professional production and operation of various types of industrial fasteners.
Company provides: National standard(GB), British standard(BS), German standard(DIN), American standard (ANSI) IFI), Japanese standard(JIS), International standard(ISO) and other standard fasteners, also can be made according to the requirement of customers.
The company product sales areas: mainland China/Europe/America/Japan/southeast Asia region.
The company's quality management system: ISO9001:2000 certification, ROHS certification, CE certification, etc.
The company's products usage: Automotive/Mould/Mechanical/Hydraulic/Wind Energy/PV/Elec-tronic/Construction, etc.

Our company is specialized in fasteners, have CE certificates and our own testing laboratory,14 years experience
